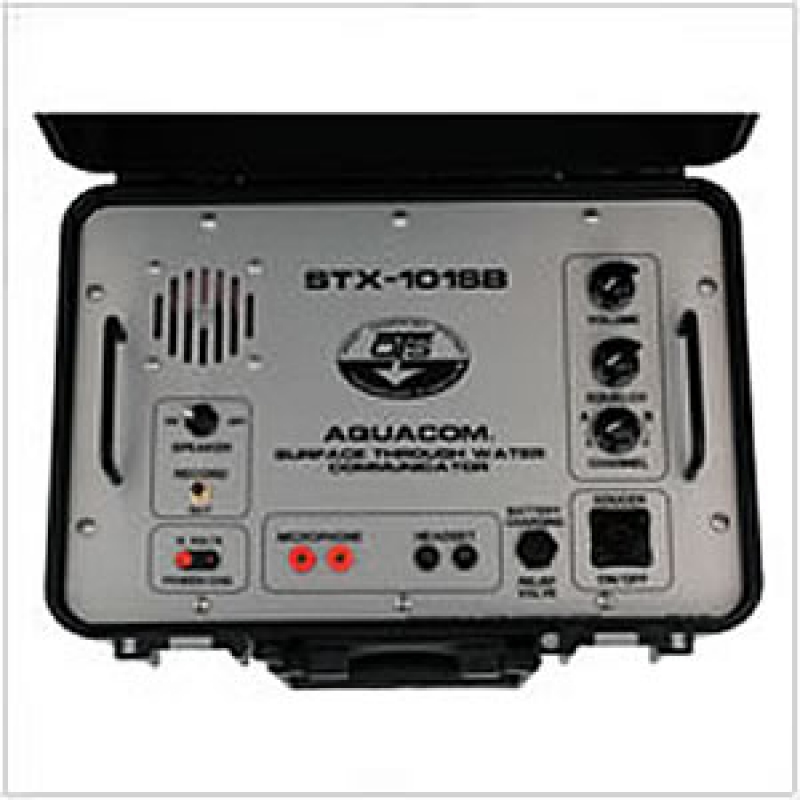

Aquacom STX-101SB/8 Surface Unit for BELL-200 (8 kHz Only)

Military Amphibious Marine Tactical Equipment

Shop by categories

Brand: OTS

Military Surface Station. 70 watts. Includes charger, hand held mic., batteries, and transducer. Works with Bell-200 (8 kHz only).

Features	STX-101SBR	STX-101SB
Nominal Range	200m-6000m*	200-6000m*
Channels	2	1
Frequencies	Low-frequency version Ch. A: 8.0875 kHz USB Ch. B: 11 kHz LSB	8.0875 kHz USB or 25 kHz USB
Output Power (watts)	70	70
External Power Source	24 VDC @ min. 10 amps	12 VDC @ min. 4 amps
Microphone/ Speakers	Hand held; dynamic, 100-1000 ohm / heavy duty front panel speaker with on/off control	Hand held; dynamic, 200 ohm / heavy duty front panel speaker with on/off control
Battery Type	n/a	Supplied with (2) RB-6V rechargeable batteries -- Do Not Use Alkaline
Battery Life (10% duty cycle)	n/a	6 hrs
Dimensions (W x H x D)	Height: 3.50" Width: 18.4" between centers of mounting holes 17" case width Depth: 8.00" (mounting brackets)	14" x 6.5" x 10.60" 12 lbs

Brand: OTS

Military Surface Station. 70 watts. Includes charger, hand held mic., batteries, and transducer. Works with Bell-200 (8 kHz only).

Specifications

Features	STX-101SBR	STX-101SB
Nominal Range	200m-6000m*	200-6000m*
Channels	2	1
Frequencies	Low-frequency version Ch. A: 8.0875 kHz USB Ch. B: 11 kHz LSB	8.0875 kHz USB or 25 kHz USB
Output Power (watts)	70	70
External Power Source	24 VDC @ min. 10 amps	12 VDC @ min. 4 amps
Microphone/ Speakers	Hand held; dynamic, 100-1000 ohm / heavy duty front panel speaker with on/off control	Hand held; dynamic, 200 ohm / heavy duty front panel speaker with on/off control
Battery Type	n/a	Supplied with (2) RB-6V rechargeable batteries -- Do Not Use Alkaline
Battery Life (10% duty cycle)	n/a	6 hrs
Dimensions (W x H x D)	Height: 3.50" Width: 18.4" between centers of mounting holes 17" case width Depth: 8.00" (mounting brackets)	14" x 6.5" x 10.60" 12 lbs
