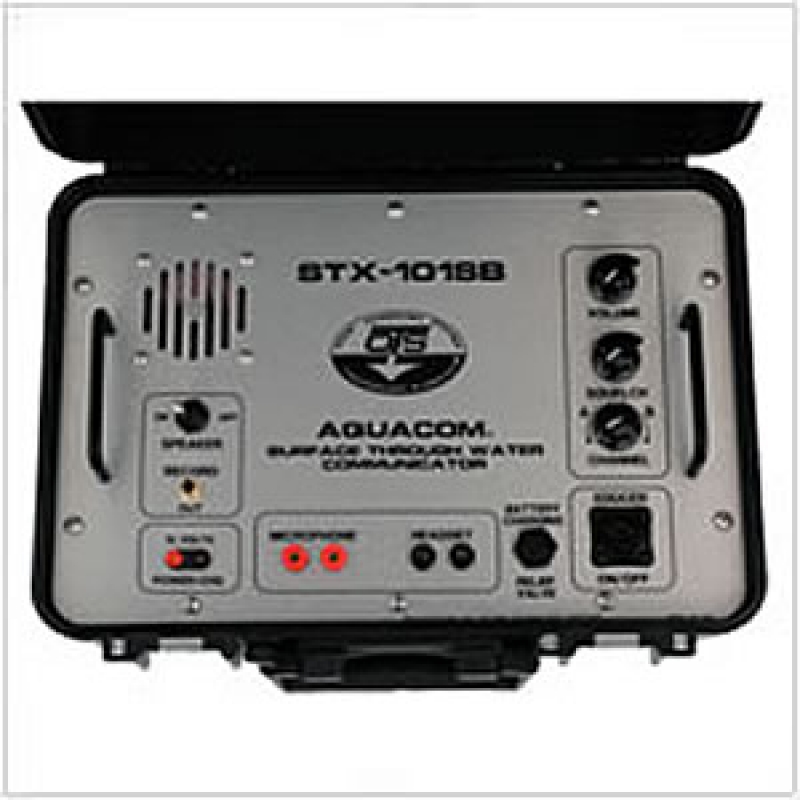

Aquacom STX-101SB Surface Unit for BELL-200 (25kHz Only)

Add to list (wish/quote request)



Go to (view)

Product details

Brand: OTS
Military Surface Station. 70 watts. Includes charger, batteries, hand held mic. and transducer. Works with BELL-200 (25 kHz only).

Care and Storage Instructions

  • After use, wash in fresh water and allow to dry in a well ventilated area out of direct sunlight
  • Store in a well ventilated dry area away from direct sunlight

Specifications

Specification Comparison of Through-water Surface Units

Features
STX-101M
STX-101
STX-101SB
Nominal Range
200-1500m*
1000m+*
200-6000m*
Channels
8
1-4
1
Output Power (watts)
10
5
70
External Power Source
12 VDC @ min 4 amps
12 VDC @ min. 5 amps
12 VDC @ min. 4 amps
Microphone/ Speakers
Hand held; dynamic, 200 ohm / heavy duty front panel speaker with on/off control
Hand held; dynamic, 200 ohm / heavy duty front panel speaker with on/off control
Hand held; dynamic, 200 ohm / heavy duty front panel speaker with on/off control
Battery Type
Supplied with (2) RB-6V rechargeable batteries -- Do Not Use Alkaline
Supplied with (2) RB-6V rechargeable batteries -- Do Not Use Alkaline
Supplied with (2) RB-6V rechargeable batteries -- Do Not Use Alkaline
Battery Life (10% duty cycle)
12 hrs
12 hrs
6 hrs
Dimensions (W x H x D)
14" x 6.5" x 10.60"
12 lbs
14" x 6.5" x 10.60"
12 lbs
14"x 6.5" x 10.60"
12 lbs
