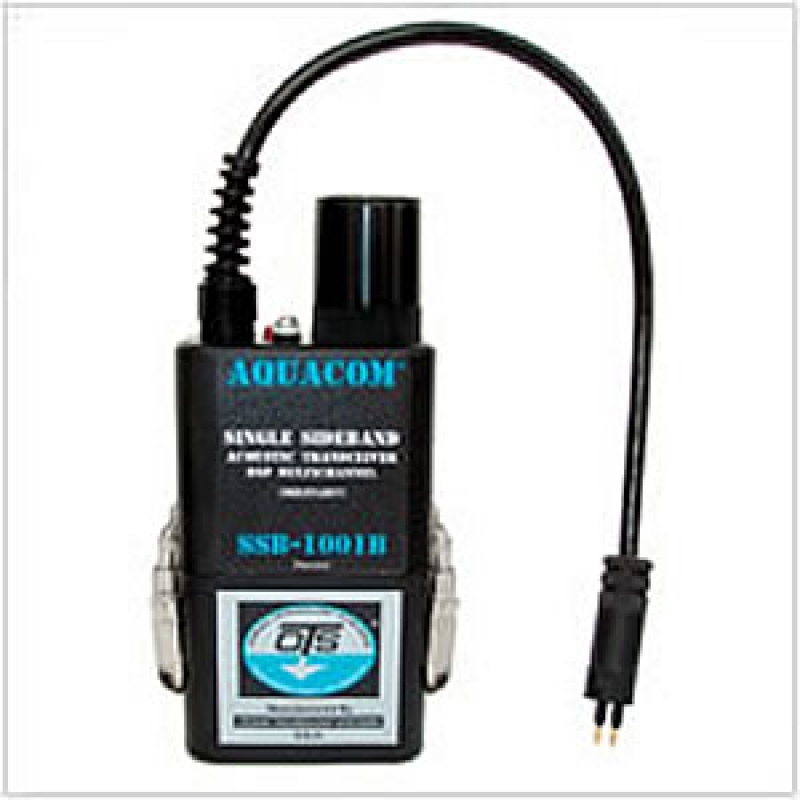

Aquacom® SSB-1001B 8-Ch. 10W Transceiver Kit
Share
Share
Share
Share
Go to (view)
Product details
Brand: OTS
Military Diver Transceiver: 8 channel, 10 watts (includes RB-11 battery RCS-15US charger (110V) & EMA-2)
The Aquacom® SSB-1001B transceiver is a high power, 10 watt, 8-channel single sideband underwater communications unit designed with the Military in mind. The SSB-1001B can be configured to operate with virtually any style full-face mask (FFM) or mouth mask. With the addition of a CDK-6 Surface Accessory Kit, the SSB-1001B is easily converted into a portable surface station.
Standard features:
- Voice Operated Transmitter (VOX)
- Push-to-talk control (PTT)
- Squelch
- 8 channels
- Earphone volumes
- Voice menu (the user can adjust the SSB-1001B underwater via the voice menu)
- Removable transducer
- Heavy duty design
Care and Storage Instructions
- After use, wash in fresh water and allow to dry in a well ventilated area out of direct sunlight
- Store in a well ventilated dry area away from direct sunlight
Specifications
Specification Comparison of Through-water Surface Units
Features | Buddy Phone | SSB-1001B | 2010 |
Nominal Range | 50-500m* | 200-3000m* | 200-1000m* |
Channels | 1 & 4 | 1-8 | 1-4 |
Channel Selection | n/a | selector switch | selector switch or voice menu |
Output Power (watts) | 0.5 | 10 | 5 |
Microphone/ Speakers | Included with unit | Requires a separate Ear/Microphone Assembly | Requires a separate Ear/Microphone Assembly |
Transmit Control | PTT | PTT/VOX | PTT/VOX |
Maximum Depth | 130 fsw | 300 fsw | 300 fsw |
Battery Type | (1) 9-volt alkaline battery or Ultralife® lithium 9 V cell | 8-AA alkaline or RB-11 NiMH battery pack | 8-AA alkaline or RB-11 NiMH battery pack |
Battery Life (10% duty cycle) | approx 20 hrs | Alkaline: 7 hrs NiMH: 8 hrs | Alkaline: 7 hrs NiMH: 12 hrs |
Dimensions (H x W x D) | 5.18" x 3.5" x 2.0" 8.1 oz (229.64 grams) | 8.125" x 4.5" x 2.25" 8 oz | 8.125" x 4.5" x 2.25" 8 oz |
