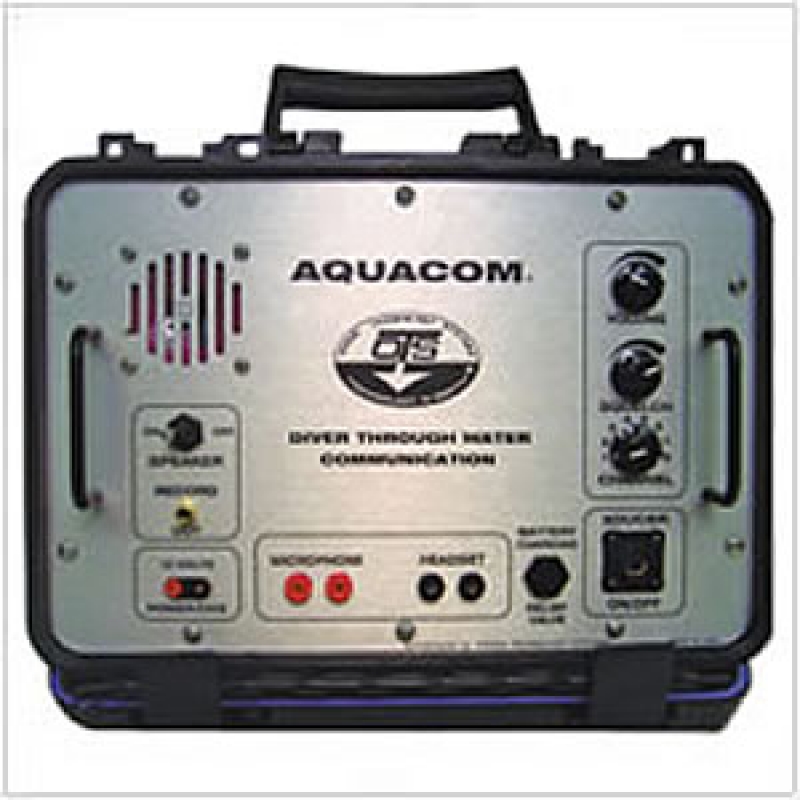

Aquacom® STX-101M 8-Ch. 10W Surface Station
Military Surface Station. 8 channel, 10 watts. Includes Int'l charger, hand held mic., and transducer.
The Aquacom® STX-101M transceiver is a state-of-the art 10-watt, 8-channel single sideband surface station designed to meet the demanding profile of the military diver. It operates with virtually all OTS Aquacom® and Buddy Phone®transceivers. The STX-101M comes in a heavy duty housing and has many useful features including: record-out jack, front panel adjustable squelch, and deluxe hand-held microphone.
The operator can choose from 8 different channels via a front panel switch. When operating in conjunction with divers equipped with the SSB-1001B, the dive supervisor will have total communication control with all free-swimming scuba divers.
Options and Accessories:
- RB-6V Rechargable Battery Pack (two required)
- RCS-13US/EU/UK/AU Smart Charger
- THB-101 Deluxe Headset w/boom microphone
- THB-1 Headset no boom microphone
- TC-35S 55' Transducer Extension Cable
- TC-100 100' Transducer Extension Cable
- TA-32M Hull Mounted transducer w/ fairing (33 kHz)
Specification Comparison of Through-water Surface Units
| Features | STX-101M | STX-101 | 2010 & CDK-6 |
| Nominal Range | 200-3000m* | 200-3000m* | 200-1500m* |
| Channels | 8 | 1-4 | 1-4 |
| Output Power (watts) | 10 | 5 | n/a |
| External Power Source | 12 VDC @ min 9 amps | 12 VDC @ min 5 amps | n/a |
| Microphone/ Speakers | Hand held; dynamic, 200 ohm / heavy duty front panel speaker with on/off control | Hand held; dynamic, 200 ohm / heavy duty front panel speaker with on/off control | THB-13 headset w/boom microphone connected via Hi-USE® connector |
| Battery Type | Supplied with (2) RB-6V rechargeable batteries. Optionally accomodates(2) 6-volt lattern battery (heavy duty w/springs) | (2) 6-volt lattern battery (heavy duty w/springs) or two optional RB-6V gel-cell batteries | 8-AA Alkaline or RB-11 NiMH battery pack |
| Battery Life (10% duty cycle) | 10 hrs alkaline 6 hrs gel-cell | 20 hrs alkaline 12 hrs gel-cell | Alkaline: 7hrs NiMH: 12 hrs |
| Dimensions (W x H x D) | 14.0"x 6.5" x 10.60" 12 lbs w/ batteries | 14.0"x 6.5" x 10.60" 12 lbs w/ batteries | n/a |
Military Surface Station. 8 channel, 10 watts. Includes Int'l charger, hand held mic., and transducer.
The Aquacom® STX-101M transceiver is a state-of-the art 10-watt, 8-channel single sideband surface station designed to meet the demanding profile of the military diver. It operates with virtually all OTS Aquacom® and Buddy Phone®transceivers. The STX-101M comes in a heavy duty housing and has many useful features including: record-out jack, front panel adjustable squelch, and deluxe hand-held microphone.
The operator can choose from 8 different channels via a front panel switch. When operating in conjunction with divers equipped with the SSB-1001B, the dive supervisor will have total communication control with all free-swimming scuba divers.
Options and Accessories:
- RB-6V Rechargable Battery Pack (two required)
- RCS-13US/EU/UK/AU Smart Charger
- THB-101 Deluxe Headset w/boom microphone
- THB-1 Headset no boom microphone
- TC-35S 55' Transducer Extension Cable
- TC-100 100' Transducer Extension Cable
- TA-32M Hull Mounted transducer w/ fairing (33 kHz)
Specification Comparison of Through-water Surface Units
| Features | STX-101M | STX-101 | 2010 & CDK-6 |
| Nominal Range | 200-3000m* | 200-3000m* | 200-1500m* |
| Channels | 8 | 1-4 | 1-4 |
| Output Power (watts) | 10 | 5 | n/a |
| External Power Source | 12 VDC @ min 9 amps | 12 VDC @ min 5 amps | n/a |
| Microphone/ Speakers | Hand held; dynamic, 200 ohm / heavy duty front panel speaker with on/off control | Hand held; dynamic, 200 ohm / heavy duty front panel speaker with on/off control | THB-13 headset w/boom microphone connected via Hi-USE® connector |
| Battery Type | Supplied with (2) RB-6V rechargeable batteries. Optionally accomodates(2) 6-volt lattern battery (heavy duty w/springs) | (2) 6-volt lattern battery (heavy duty w/springs) or two optional RB-6V gel-cell batteries | 8-AA Alkaline or RB-11 NiMH battery pack |
| Battery Life (10% duty cycle) | 10 hrs alkaline 6 hrs gel-cell | 20 hrs alkaline 12 hrs gel-cell | Alkaline: 7hrs NiMH: 12 hrs |
| Dimensions (W x H x D) | 14.0"x 6.5" x 10.60" 12 lbs w/ batteries | 14.0"x 6.5" x 10.60" 12 lbs w/ batteries | n/a |
