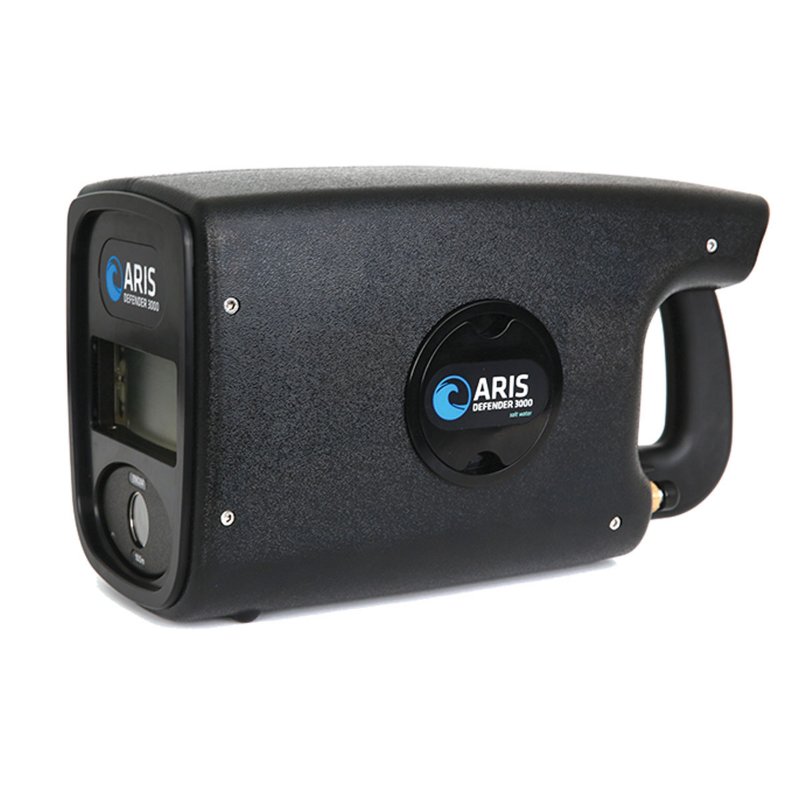

ARIS DEFENDER 3000 - SONAR

The ARIS Defender 3000 is a high-resolution, diver-held imaging sonar designed for military, law enforcement, port security and professional underwater operations. Combining target detection and identification in a single system, the Defender 3000 delivers real-time, video-like sonar imagery in black, turbid and zero-visibility water, enabling operators to conduct critical underwater missions where conventional optical systems are ineffective.

Designed as a versatile 2-in-1 sonar platform, the Defender 3000 can be rapidly converted into the ARIS Explorer 3000 by removing the flotation shell and handle, providing a 300 m depth-rated sonar suitable for deployment on ROVs, AUVs, vessels and fixed installations. The system features dual-frequency operation, autonomous battery power and optional topside supervision, making it ideal for military diving, search and recovery, hull inspections, harbour security and underwater infrastructure inspections.

Features

• 2-in-1 Convertible Sonar – Converts from Defender 3000 to Explorer 3000
• Dual Frequency Operation – 3.0 MHz Identification & 1.8 MHz Detection modes
• Video-Like Sonar Imagery – High-definition real-time underwater imaging
• Dynamic Focus Technology – Optimised image clarity across varying ranges
• Diver-Held Configuration – Compact, lightweight and easy one-handed operation
• High Frame Rate – Up to 12 frames per second
• 128 Beam Imaging Array – Exceptional target definition
• Mask-Mounted Colour Display – Real-time underwater viewing
• Autonomous Battery Operation – Up to 4 hours continuous operation
• Optional Supervisory Kit – Enables topside viewing and continuous external power
• Ethernet Connectivity – Windows® software compatible
• 100 m Operational Depth Rating (Defender) / 300 m (Explorer configuration)

Operational Advantages

• Provides real-time underwater situational awareness in zero-visibility environments.
• Enables rapid target detection and identification during military and security operations.
• Dual-frequency operation allows operators to switch between wide-area detection and detailed target identification.
• Compact diver-held design supports one-handed operation while maintaining diver mobility.
• Convertible architecture provides both diver-held and vehicle-mounted sonar capability in a single system.
• Ideal for Hull & Berth Inspections, Port & Harbour Security, Search & Recovery, Environmental Monitoring, Construction Monitoring, Diver Monitoring, Equipment Recovery and Underwater Inspections.
• Optional topside supervisory system enables continuous operation and live monitoring from the surface.
• High-definition imagery significantly improves operator confidence and mission effectiveness in challenging underwater conditions.

ARIS Defender 3000 Specifications

Product Type: Imaging Sonar
Sonar Frequencies: 3.0 MHz & 1.8 MHz
Identification Range: Up to 5 m (3.0 MHz)
Detection Range: Up to 15 m (1.8 MHz)
Operational Depth: 100 m
Explorer Conversion Depth: 300m
Dimensions: 43 × 22 × 24 cm
Weight (Air): 11 kg
Weight (Water): Neutral
Number of Beams: 128
Beam Width: 0.25°
Field of View: 30° × 14°
Frame Rate: Up to 12 fps
Range Resolution: Down to 3 mm
Power Consumption: 20 W (Typical)
Cable Length: Up to 150 m
Battery: 28.8 Vdc Lithium-Ion
Battery Endurance: Up to 4 Hours
Internal Storage: 64 GB (Minimum 14 Hours Recording)
Interface: Ethernet
Software: Windows® Compatible

Product Data

SKU	DESCRIPTION
SO10049	ARIS Defender 3000 Sonar
