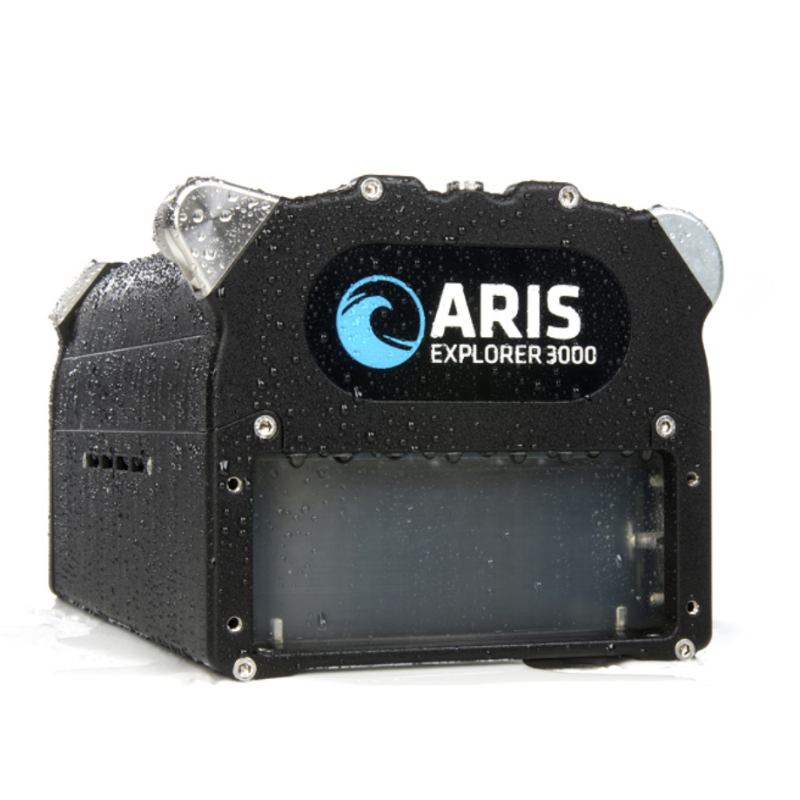

ARIS EXPLORER 3000 - SONAR

The ARIS Explorer 3000 is a high-definition imaging sonar engineered for ROVs, AUVs, unmanned surface vessels (USVs), pole-mounted systems, fixed installations and underwater inspection platforms. Designed for military, commercial diving, offshore, port security and infrastructure inspection applications, the Explorer 3000 delivers exceptional video-like sonar imagery in dark, turbid and zero-visibility water, enabling accurate target detection, identification and classification where conventional optical systems are ineffective.

Featuring 128 physical transducer beams, dual-frequency operation (3.0 MHz & 1.8 MHz) and Dynamic Focus technology, the Explorer 3000 provides industry-leading image clarity, high-resolution close-range imaging and outstanding target definition. Its compact, lightweight design, integrated compass and depth gauge, Ethernet connectivity and Windows® software make it an ideal solution for permanent installations, ROV integration and advanced underwater inspection operations.

Features

• High-Definition Imaging Sonar – Video-like underwater imagery
• Dual Frequency Operation – 3.0 MHz Identification & 1.8 MHz Detection
• 128 Beam Imaging Array – Exceptional target definition
• Dynamic Focus Technology – Optimised image quality across multiple ranges
• 300 m Depth Rating – Suitable for deep-water operations
• Built-In Compass & Depth Gauge
• Compact & Lightweight Design
• Ethernet Interface – Simple system integration
• Windows® Compatible Software
• High Frame Rate – Up to 15 frames per second
• Low Power Consumption
• Ideal for ROV, AUV, USV & Fixed Installation Applications

Operational Advantages

• Produces high-definition sonar imagery in zero-visibility and turbid water.
• Enables accurate target detection, identification and classification during underwater operations.
• Dual-frequency operation provides both detailed close-range imaging and increased detection range.
• Compact, lightweight design simplifies integration onto ROVs, AUVs, USVs, pole systems and fixed infrastructure.
• Integrated compass and depth gauge improve situational awareness during inspections.
• Dynamic Focus technology delivers consistently sharp imagery across varying operating distances.
• Suitable for underwater inspections, hull and berth inspections, port and harbour security, construction monitoring, environmental monitoring, equipment placement and diver monitoring.
• Low power requirements make the system ideal for long-duration deployments and unmanned platforms.

Product Type: Imaging Sonar
Sonar Frequencies: 3.0 MHz & 1.8 MHz
Identification Range: Up to 5 m (3.0 MHz)
Detection Range: Up to 15 m (1.8 MHz)
Operational Depth: 300m
Dimensions: 26 × 16 × 14 cm
Weight (Air): 5.12kg
Weight (Water): 1.55kg
Number of Beams: 128
Beam Width: 0.25°
Field of View: 30° × 15°
Frame Rate: Up to 15 fps
Range Resolution: Down to 3 mm
Power Consumption: 20 W (Typical)
Cable Length: Up to 150 m
Power Source: External DC Power Supply
Interface: Ethernet
Software: Windows® Compatible

Product Data

SKU	DESCRIPTION
SO10051	ARIS Explorer 3000 Sonar
