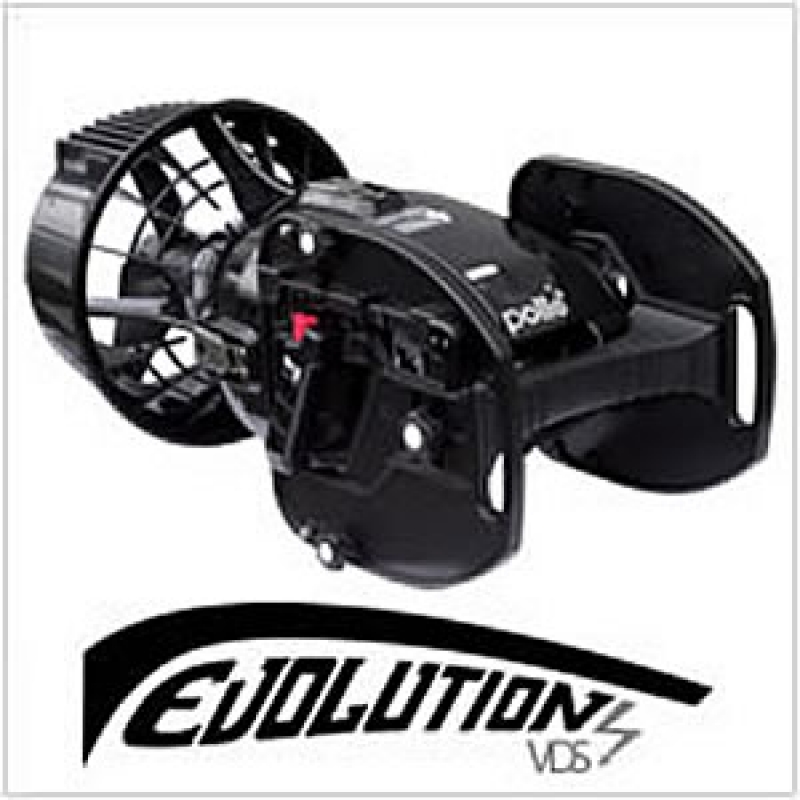

av-2 EVOLUTION VDS (NSN: 4220-66-158-6194)

Rating & reviews (0 reviews)

Just now there are 1 people looking here.


sku: SC05018


Product details

Brand: Apollo

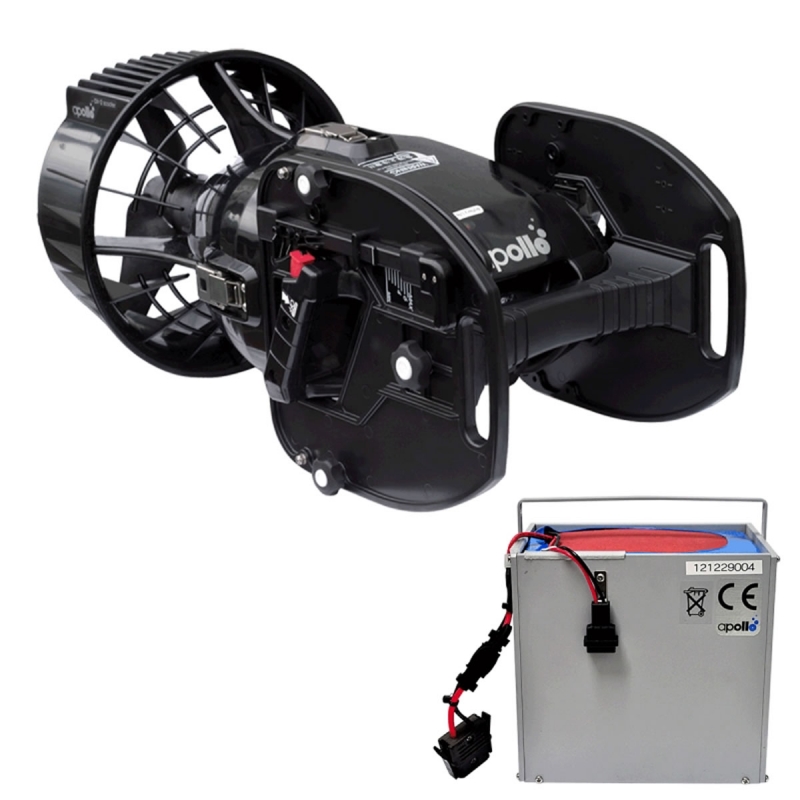

AV-2 Evolution Scooter - Li Ion Battery (NSN: 4220-66-158-6259)

Control or Battery Life indicator

  • Li Ion Battery 25.2V-27Ah
  • Batteries are interchangeable but require different chargers
  • Shock-resistant ABS resin body & DC Brushless motor
  • Three speed variable pitch propeller
  • Progresive acceleration system
  • Standard acceleration system on/off
  • Thermal switch protection automatically switches off if overheating occurs
  • Approx 21.5kg on the surface / -1.3kg buoyancy underwater
  • Dimensions: 720 x 340mm
  • Rated to 90 meters
  • Includes hand free saddle and multi-rider wings
  • Includes battery and charger
  • Speed: 0 - 4 km/hour
  • Up to 120 minutes continuous operation in hands free riding position
  • Average Cruising Range: 7200 - 8000m

Apollo AV-2E Diver Propulsion Vehicle

Apollo Li Ion Battery
Apollo AV-2 Saddle

Apollo AV-2E Li Ion Battery Charger (New)
Storage Case AV-2E
Apollo AV-TSS Tactical Towing System Stainless Steel
Apollo AV-Instrument Panel
Apollo Single Handed Riding System
Apollo MAINTENANCE KIT (all items)
Apollo AV-2E Body O-Ring ORANGE
Apollo AV-2E Body O-Ring BLACK
Apollo AV-2E Propeller Axis O-Ring Black LARGE
Apollo AV-2E Propeller Axis O-Ring Black SMALL
Apollo AV-2E Silicon Grease
Apollo Vehicle AV-2 Instruction Manual

Instruction Manuals for Li Ion Battery and Battery Charger


Hands Free Riding Style

Travel at top speed.

Coast by your dive buddies twisting and turning like a dolphin. Literally dive circles around them.

The hands free riding saddle helps you move like you were born to dive. steering is achieved through body positioning.

A built-in arm extends trigger switch access forward for a more convenient placement.

Both hands are free to extend like an airplane or maybe just to hold cameras, lights, and other accessories essential to your dive. More than just a fun ride.

There are many practical reasons for saddle use.

Use of an underwater vehicle in general can reduce your air consumption by up to 50%.

The saddle places you and the vehicle in a more streamlined position.

Being dragged long distances creates excessive muscular fatigue in the arms.

Furthermore, riding behind a scooter creates resistance and reduces the efficiency of the propeller blades.

Riding horizontally in front of the scooter streamlines the body and scooter, reducing drag and dramatically improving both speed and distance traveled on a single battery charge.

In addition, both hands are free for carrying lights, cameras or other underwater equipment.


By using the Wings it's now possible to pull 2 more divers with the av-2 EVOLUTION.

The diver's different physiques when holding onto the wings have virtually no effect on the scooters performance.

The speed and distance with 3 men diving are almost the same as using the scooter solo without a saddle.

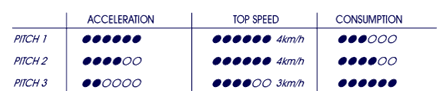

3 Speed adjustment - Propeller pitch assembly

Additionally it is possible to easily vary the propellers angle or pitch, which allows for even more fine-tuning of the scooters speed to the individual divers needs.
