JEYCO FAST ROPE

Australian manufactured.

Jeyco’s Fast Rope Assemblies have been designed to enhance rapid controlled decent from hovering aircraft. They are fabricated using specialist high strength, high grip swarming material for controlled comfortable decent and eliminate the need for heavy steel hardware connections with a specialist integrated Plasma headpiece.

The complete lightweight Fast Rope Assembly is a non-rotating fibre construction making rapid decent safer and with no heavy steel fittings the rope can be jettison without harm to personnel.

This system, identified by specific NATO part numbers, has been rigorously tested and proven over many years by the Australian Defence Forces, Australian Police and various other
Special Forces throughout the wider Australasian region.

These fast ropes are designed to allow up to five (5) personnel (120 kg each - person/equipment), to rapidly descend in a controlled manner from a hovering aircraft. This technique, using gloved hands and boots, enables friction braking and is similar to that used on a fireman's pole. Following the descent, there may be a requirement to jettison the rope.

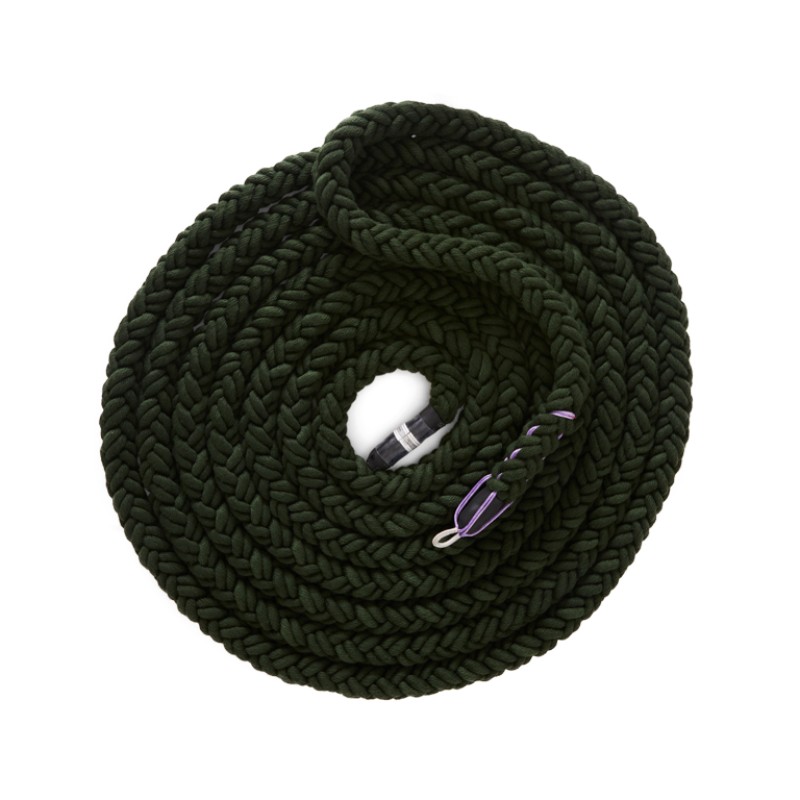

The complete Fast Rope Assembly, manufactured by Jeyco is a non-rotating synthetic rope of 8 strand plaited spun 'Nylon 6', olive drab in colour, with a nominal diameter of 50 mm.

FEATURES:

• Lightweight non rotational construction, easy to handle
• Advanced Plasma HMPE crown eliminating steel hardware
• Offered in fully customizable lengths, standard lengths from 60’ to 90’
• Colour: olive with purple crown
• NATO approved part numbers
• Custom carry bags available

SHELF LIFE

Fast Ropes are subject to a Shelf Life restriction of six (6) years (from date of manufacture). Once introduced to service, each fast rope has a Service Life of four (4) years (from date of introduction to service) and is not to be used past this date, regardless of the condition of the rope. NB. Shelf Life is defined as a specified time period that an item may remain unused after procurement, prior to being introduced into service. Service Life is defined as a specific time period that an item may remain in use after being introduced into service, e.g., a fast rope that is introduced into service immediately after procurement has an actual life of just four (4) years and is to be withdrawn from service and disposed of at the end of this time. A fast rope may sit on the shelf for any period up to six (6) years, after which the four (4) year service life shall take effect. The cumulative life of a fast rope is not to exceed ten (10) years.

Fast Ropes are to be inspected after each use for dirt or other foreign material. Subsequent cleaning and drying of the equipment may be required to prevent a possible malfunction or deterioration of the item/s.

Fast Ropes are to be rejected for service and returned to the supplier if any of the following is
evident.
- excessive wear;
- cuts above allowed limitations;
- abrasions above allowed limitations;
- chemical contamination;
- un-secure whipping;
- cracked lower end heat sealing; and
- large areas of oil or grease are present on the rope.
- faded or incomplete identification number.

NSN NUMBER	DESCRIPTION	SIZE	COLOUR
4020-66-147-9943	Jeyco Fastrope	12.19m (40ft)	Green
4020-66-147-9944	Jeyco Fastrope	18.3m (60ft)	Green
4020-66-147-9945	Jeyco Fastrope	27.5m (90ft)	Green
1670-66-159-1908	Jeyco Fastrope G-Soft	12.19m (40ft)	Green
1670-66-159-1909	Jeyco Fastrope G-Soft	18.3m (60ft)	Green
1670-66-159-1191	Jeyco Fastrope G-Soft	27.5m (90ft)	Green

---
