Logosease SDF Surface Station SS001

Rating & reviews (0 reviews)

Just now there are 1 people looking here.

$4,950.00 inc.GST

sku: UC03000



Product details

Brand: CASIO Logosease

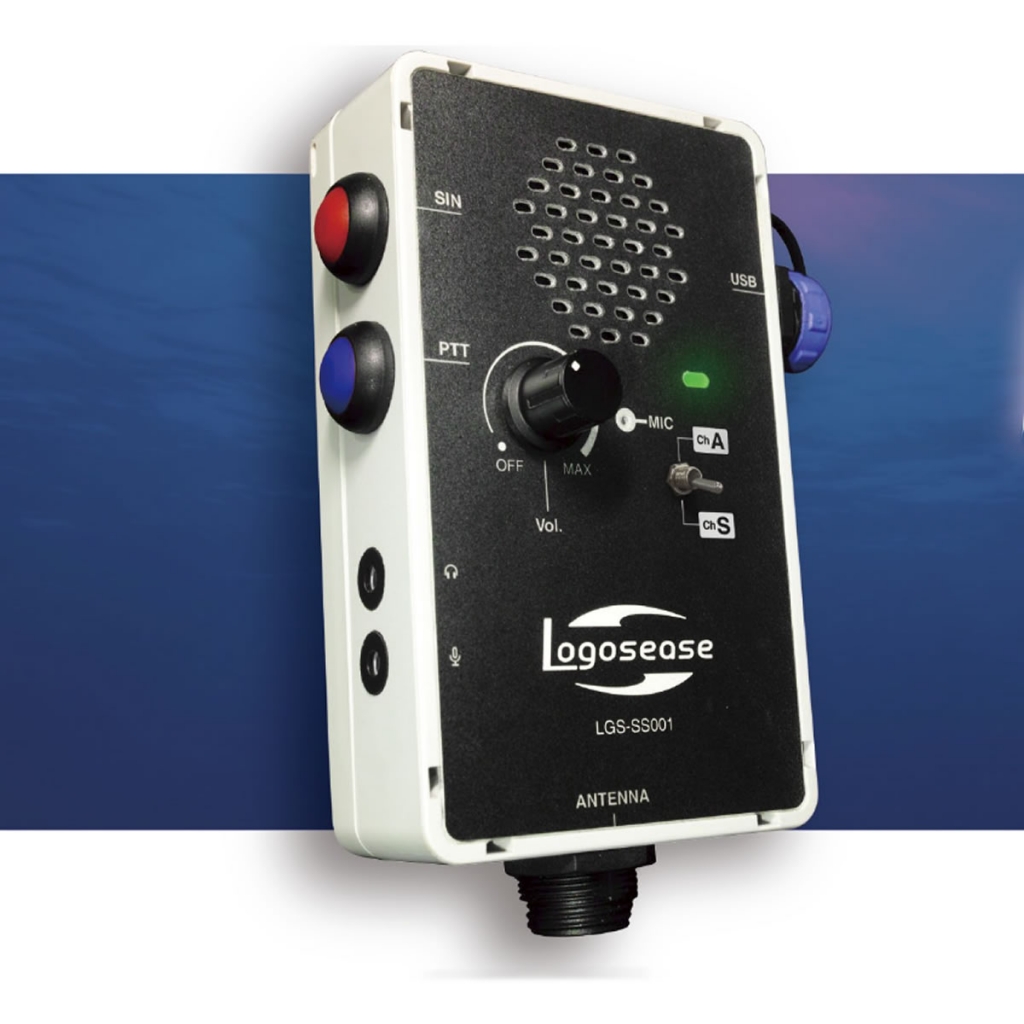

Logosease SDF Surface Station SS001

Available for government users only

Surface Station

  • Standard antenna (10m) attached
  • Handy size
  • Communication range: Max. 150m
  • Continuous operation hours: Max.12 hours
  • Practical waterproof (IP-55 level)

Specifications

Logosease SDF Surface Station SS001

Specification

Outer package

Size:
125mm x 75mm x 35mm
Weight:
Approx. 285g
Waterproof:
Practical waterproof
Temperature in use:
0~40oC

Audio section

Microphone:
Capacitor microphone
Speaker:
Dynamic type speaker

Communication section

Channels:
2 channels (Channel A , Channel S) Select channel by switching. *Default is Channel A
Antenna:
Cylindrical ceramic piezoelectric element (*cable length 1Om)
Max.transmisson range:
Max.150m
(*Under the condition of antenna of a Logosease on the diver facing to the antenna of Surface Station in the quiet sea)
Directivity:
No directivity around the cylinder of the antenna, but not to the vertical direction

Indicator

LED:
In charging, red is ON./ When charging is completed, LED will be OFF
Changes colors/ LED ON patterns in each mode

Operation section

Power:
Volume with switch
PTI:
PTI (push to talk) button
Sine wave:
Button to push (sine wave releasing button in emergency)
External terminal:
MIC jack (dia. 3.5mm jack impedance matching 2.2 ohm or less)
EAR jack (dia. 3.5mm jack /stereo impedance matching 16 ohm/32 ohm)

USB

Battery charging:
Approx. 6 hours at 500mAh

Battery

Rating:
Li-ion battery 2210mAh
How to charge:
By USB
Working hours:
Approx. 12 hours assuming 10% of the time is used for transmitting
Maintenance:
Li-ion battery should be exchanged by the manufacturer

Accessories

Accessories:
USB cable


Resources

UC03000-E Instruction Manual SS001-SDF.pdf

Size: 1,21 Mb

UC03000-SS001 - SDF Surface Station.pdf

Size: 1,52 Mb
