Magnacom® MAG-1001S 2-Ch. 70@ Surface Station

Description
Specifications

Brand: OTS

High Power Surface Station, 70 watts. Includes battery, charger, hand held mic. and transducer.

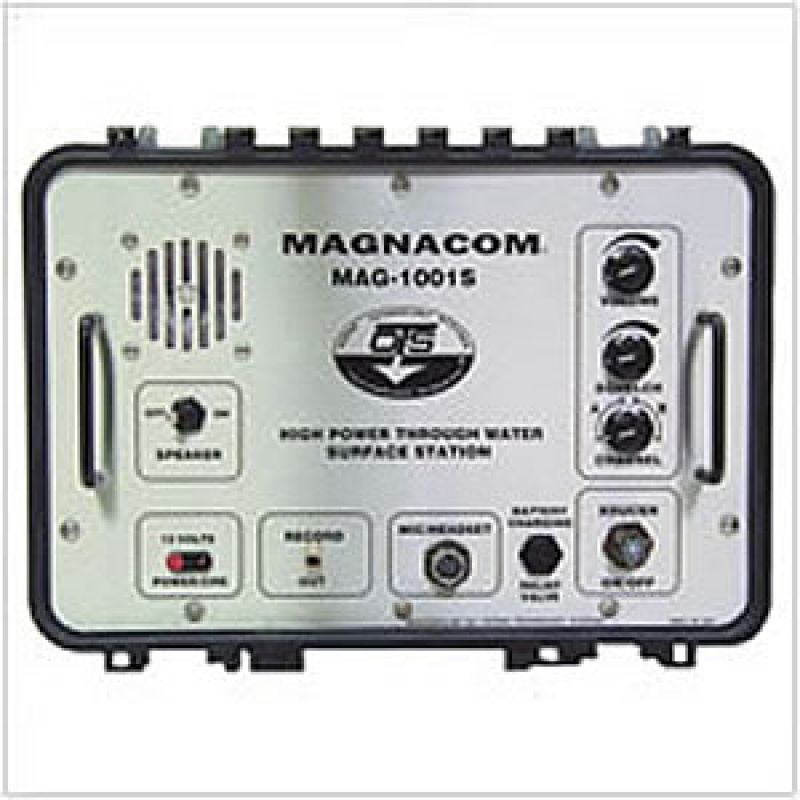

The Magnacom® MAG-1001S surface station is a state-of-the art 70-watt, dual-channel single sideband surface station designed to meet the demanding needs of the military. The Magnacom® MAG-1001S comes in a heavy duty housing and has many useful features including: record-out jack, front panel adjustable squelch and volume control, and hand-held microphone. It also comes standard with battery, battery charger, and transducer.

Options and Accessories:

RB-6V Rechargeable Battery Pack (two required)
RCS-13US/EU/UK/AU Smart Charger
THB-MAG Deluxe Headset w/boom microphone
TA-4H 25khz High Power Transducer
TC-55S Transducer Cable, 55' long

MAG-1001S Surface Transceiver Specifications

Speech Input	Headset w/boom mic., hand held mic. or front panel speaker (PTT)
Frequencies	Low Frequency Pair: Ch. A: 8.0875 kHz USB Ch. B: 11.000 kHz LSB or High Frequency Pair: Ch. A: 28.500 kHz lSB Ch. B: 32.768 kHz USB
Transducer	Piezoelectric type
Transmit Power	70W PEP
Range	3000m to 10000m
Battery Type	Use RB-6V recharageable batteries only; no alkaline.
Battery Life	8 hours (assuming 20% duty cycle)
External Power Source	12 V DC minimum 9 amps via front panel with use of an MS connector
Housing	Ultra high impact ABS (UK 613 Ultracase)
Dimensions	W=14", H=6.5", D=10.6", Weight: 12 lbs w/batteries

Brand: OTS

High Power Surface Station, 70 watts. Includes battery, charger, hand held mic. and transducer.

Options and Accessories:

RB-6V Rechargeable Battery Pack (two required)
RCS-13US/EU/UK/AU Smart Charger
THB-MAG Deluxe Headset w/boom microphone
TA-4H 25khz High Power Transducer
TC-55S Transducer Cable, 55' long

Specifications

MAG-1001S Surface Transceiver Specifications

Speech Input	Headset w/boom mic., hand held mic. or front panel speaker (PTT)
Frequencies	Low Frequency Pair: Ch. A: 8.0875 kHz USB Ch. B: 11.000 kHz LSB or High Frequency Pair: Ch. A: 28.500 kHz lSB Ch. B: 32.768 kHz USB
Transducer	Piezoelectric type
Transmit Power	70W PEP
Range	3000m to 10000m
Battery Type	Use RB-6V recharageable batteries only; no alkaline.
Battery Life	8 hours (assuming 20% duty cycle)
External Power Source	12 V DC minimum 9 amps via front panel with use of an MS connector
Housing	Ultra high impact ABS (UK 613 Ultracase)
Dimensions	W=14", H=6.5", D=10.6", Weight: 12 lbs w/batteries
