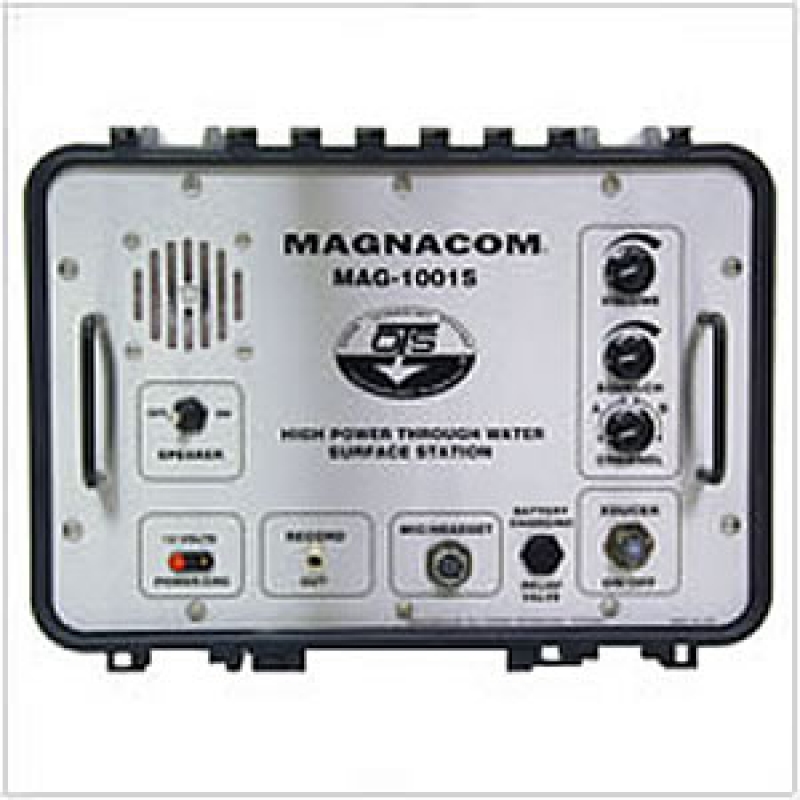

Magnacom® MAG-1001S-8/11 2-Ch. 70W Surface Station 8/11 kHz

Military Amphibious Marine Tactical Equipment

Shop by categories

Brand: OTS

70 watt, high power surface transceiver (2 channels - 8 & 11 kHz). Includes charger, hand held mic., headset and transducer.

Speech Input	Headset w/boom mic., hand held mic. or front panel speaker (PTT)
Frequencies	Low Frequency Pair: Ch. A: 8.0875 kHz USB Ch. B: 11.000 kHz LSB or High Frequency Pair: Ch. A: 28.500 kHz lSB Ch. B: 32.768 kHz USB
Transducer	Piezoelectric type
Transmit Power	70W PEP
Range	3000m to 10000m
Battery Type	Use RB-6V recharageable batteries only; no alkaline.
Battery Life	8 hours (assuming 20% duty cycle)
External Power Source	12 V DC minimum 9 amps via front panel with use of an MS connector
Housing	Ultra high impact ABS (UK 613 Ultracase)
Dimensions	W=14", H=6.5", D=10.6", Weight: 12 lbs w/batteries

Brand: OTS

70 watt, high power surface transceiver (2 channels - 8 & 11 kHz). Includes charger, hand held mic., headset and transducer.

Specifications

Speech Input	Headset w/boom mic., hand held mic. or front panel speaker (PTT)
Frequencies	Low Frequency Pair: Ch. A: 8.0875 kHz USB Ch. B: 11.000 kHz LSB or High Frequency Pair: Ch. A: 28.500 kHz lSB Ch. B: 32.768 kHz USB
Transducer	Piezoelectric type
Transmit Power	70W PEP
Range	3000m to 10000m
Battery Type	Use RB-6V recharageable batteries only; no alkaline.
Battery Life	8 hours (assuming 20% duty cycle)
External Power Source	12 V DC minimum 9 amps via front panel with use of an MS connector
Housing	Ultra high impact ABS (UK 613 Ultracase)
Dimensions	W=14", H=6.5", D=10.6", Weight: 12 lbs w/batteries
