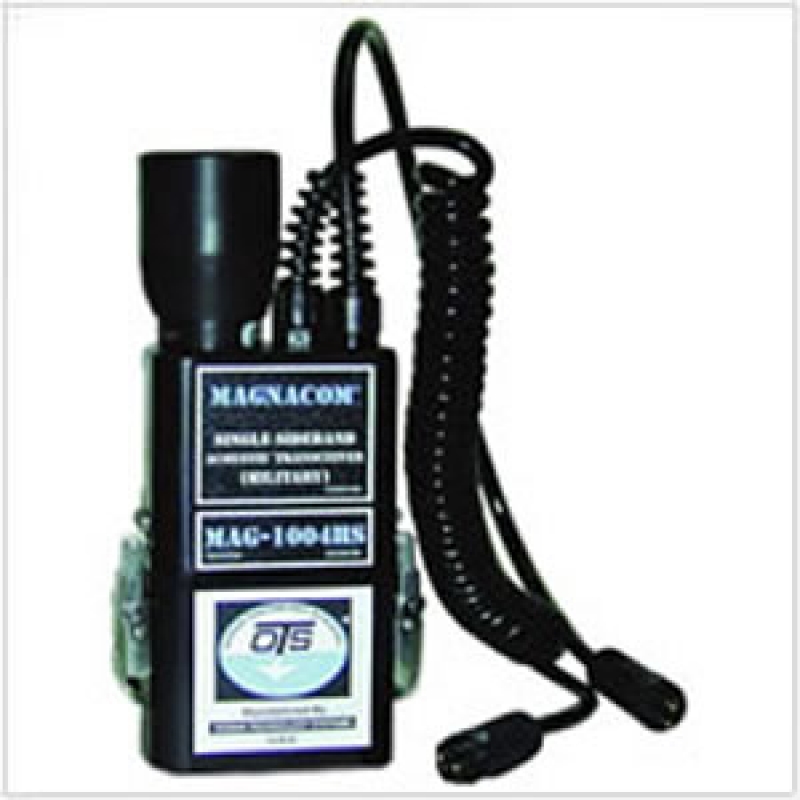

Magnacom® MAG-1004HS 2-Ch. 70W Hybrid Transceiver
Product details
High Power MAG Diver Transceiver, 70 watts, with secure comm. Includes battery and charger.
Created for Homeland Security applications, the Magnacom® MAG-1004HS is a variant of the Magnacom® SW-1000-SC. The powerful 70 watt transmitter ensures long range communications. The Secure Mode allows the users a secure way to communicate. This gives the Team the best of both worlds—through-water communications as well as diver-to-diver secure intercom. Further, with the use of an optional specially designed Buddy Line, multiple divers can participate on the secure line!
The Magnacom® MAG-1004HS does not have a sleep mode and uses different frequencies than the Magnacom® SW-1000-SC.
- Channel A - 28.5 kHz LSB ("Channel 6")
- Channel B - 32.768 kHz USB ("Channel 1")
With an output power (PEP) of 70 watts, the Magnacom® MAG-1004HS has a range of 6000m (in ideal conditions).
Options and Accessories:
- LAR 5 Adapter
Care and Storage Instructions
- After use, wash in fresh water and allow to dry in a well ventilated area out of direct sunlight
- Store in a well ventilated dry area away from direct sunlight
Specifications
Specifications
| Typical Range | Channel A: 6,000m in calm sea, 1,000m in sea state 6. Channel B: 1,000m in calm sea: 100m in sea state 6. Note: Environmental variability such as that caused by biological noise and interference, thermoclines, etc., can reduce range. |
| Audio Frequency Response | 300 to 4,000 Hz |
| Acoustic Output Power | 70 watts PEP (peak envelope power)(channel A) |
| Receiver Sensitivity | -110 dBv |
| Automatic Gain Control | 120 dB dynamic range |
| Transmitter Activation | Voice-operated transmitter (VOX) or manual activation (Push-to-Talk - PTT) |
| Battery Life | Assuming 10% duty cycle: 4 hours on high power channel A or 8 hours on low power B. 14 hours if on Intercom only. |
| Battery Type | RB-14 NiMH battery pack: 12V at 2 amp-hour |
| Low Battery Indicator | Blinking RED LED located on upper housing and beep in earphone |
| Transducer | Piezoelectric type |
| Earphone | Ceramic type (standard on most ffm) |
| Maximum Depth | 300 fsw |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -10°C to +60°C (14°F to +140°F) |
| Connector Type | Hi-USE® (1/2 hardened naval brass, gold-plated pins) |
| Housing | Injection-molded, high-impact, glass-filled Nylon plastic |
| Standard Frequencies | Channel A: 28.5 kHz lower sideband (LSB) Channel B: 32.768 kHz upper sideband (USB) |
| Housing Dimensions | H: 8.25", W: 4.5", D:2.25" |
