RESPIRATORY SIMULATOR iBREATHE MkIV

Add to list (wish/quote request)



Go to (view)

Product details

Brand: Open Safety

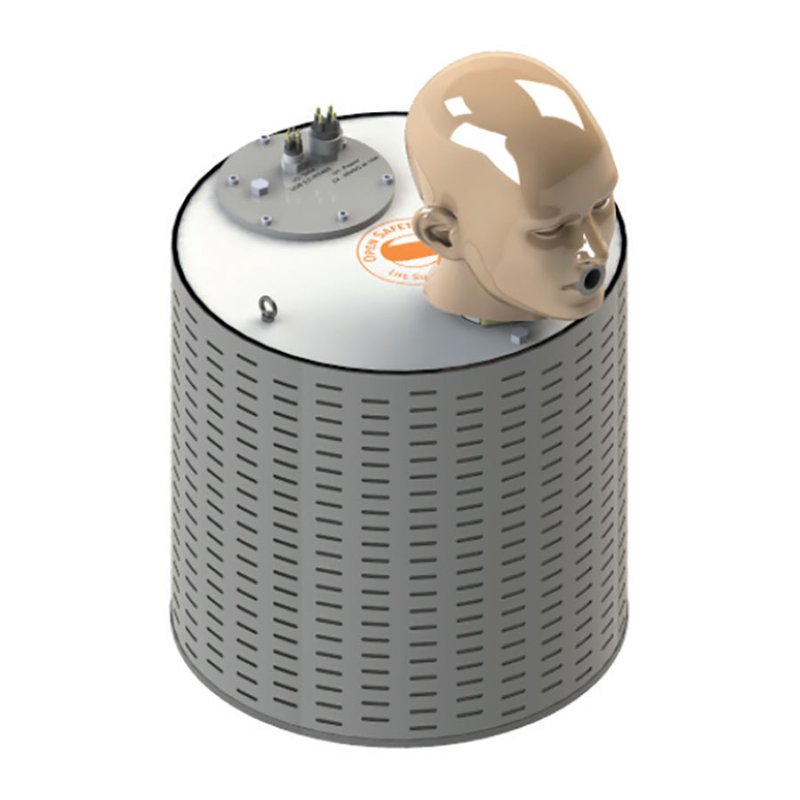

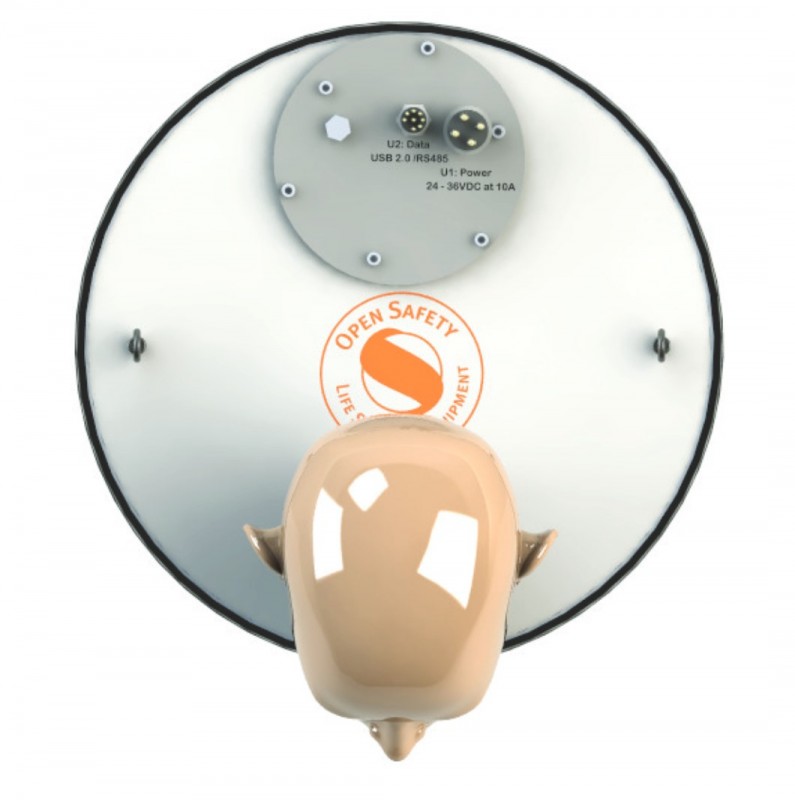

The iBreathe Respiratory Simulator MkIV provides the fastest test environment for respiratory testing of breathing equipment, including PPO2 control, WOB and resistance. It runs test sequences in minutes or hours that hitherto have taken days and weeks on first generation machines such as ANSTI and mechanical linkage machines. The time savings come from complete automation, allowing the user to do all tests in a single chamber run, without having to surface each time to change tidal volumes. The final report document is generated in real time, and saved on demand.




This 4th Generation machine provides larger tidal volumes and supports higher RMVs than older 2nd Generation breathing machines: tidal volumes to 6 litres, and RMVs to 180 lpm. The breathing machine may be immersed in water in test chambers, with the hyperbaric option, for pressure testing from full vacuum down to 1000m (3300ft). The entire simulator is portable.

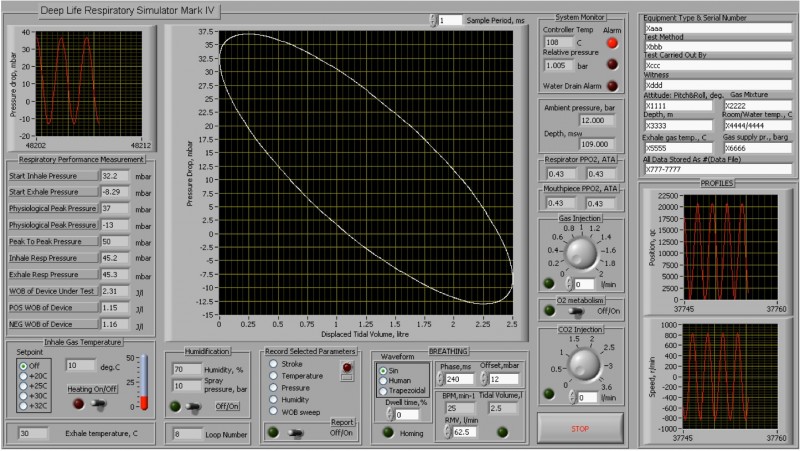

The respiratory simulator comprises a full 4 Quadrant CNC controlled breathing machine that offers all combinations of breathing rate, stroke, waveform (sine, trapezoidal and human breathing patterns), and temperature, with real time display of results via an easy-to-use LabView graphical user interface. The simulator is fully CE certified, calibrated and generates reports automatically into Word or PDF formats that can achieve an ISO 17025 test traceability, meeting the requirements of even the most stringent of audits and Notified Bodies.

Units Supply Voltage
Min: 24VDC@10A
Max: 36VDC@10A VDC

External Power Supply
Min: 100V
Max: 240V VAC

Max Supply Power: 600 W
Weight 25.8 (hyperbaric) / 21.5 (non -hyperbaric) kg



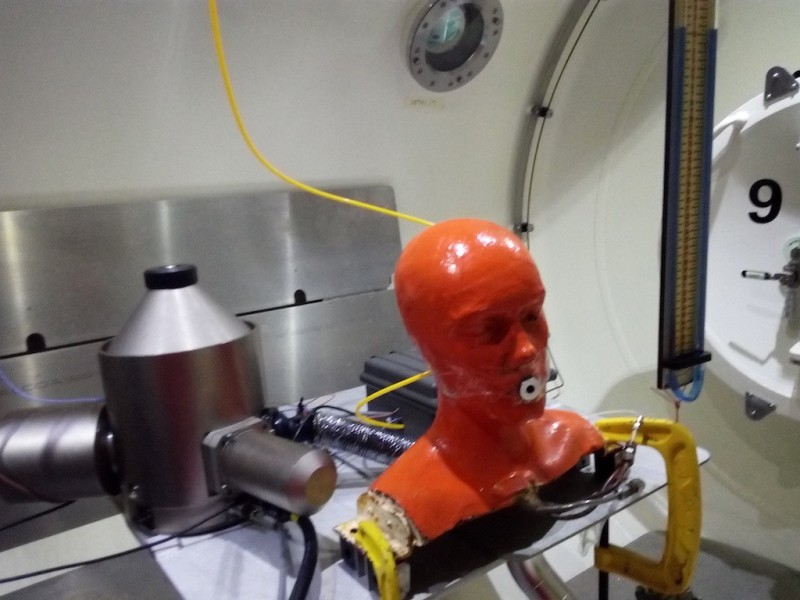

iBreathe MkIII breathing simulator used in 2017 as the sole method of measuring Work of Breathing, respiratory resistance and VWAI CO2 for certification purposes. As at June 2020 the iBreathe MkIV is now in serial production offering more accuracy and larger tidal volumes over the MkIII. The MkIV is also more tolerant of poor cables between the computer and machine, or noise on any cabling from heavy machinery operating nearby. The current generation is the culmination of 16 years of EN250 and EN14143 testing: the first generation of machines were developed in 2005 when the limits of ANSTI testers were causing too much time to be wasted.

Care and Storage Instructions

  • After use, wash in fresh water and allow to dry in a well ventilated area out of direct sunlight
  • Store in a well ventilated dry area away from direct sunlight

Specifications

  • Supply Voltage: min 24VDC@10A max 36VDC@10A units VDC
  • External Power Supply: min 100V max 240 V units VAC
  • Max Supply Power: 600 units W
  • Weight: 25.8 (hyperbaric)/21.5 (non-hyperbaric) units Kg
  • Size: 39.5cm diameter x 41cm high
  • Environment: Hyperbaric configuration can be operated in gas or liquid, including full submersion all electrical connectors are wet mateable. Nonhyperbaric configuration is gas only.
  • Storage temperature range: min -40 max +85 units <sup>o</sup>C
  • Operating temperature range: min 0.1 max +40 units <sup>o</sup>C
  • Operating ambient absolute pressure: min 0 max 101 units bar
  • Operating environment: Vacuum, In Water (including Hyperbaric), Air, Heliox, Pure oxygen (O2 clean)
  • RMV: min 7.5 max 180 units lpm
  • Stroke: min 0.1 max 6.0 units litre
  • Respiratory Rate: min 0 max 36 units bpm
  • Respiratory Waveform: Sine Human Trapezoid 0% to 95%
  • Resolution: 14 bit, +/-700mbar. Noise 0.25mbar peak to peak. 1000 samples per second.
  • Communications: RS485 115,200baud, or USB 2.0 12Mbps
  • Gas ports: 1 gas port, standard fitting.
  • Data display: Real time
  • Lissajous: Real time, including Work Of Breathing
  • Humidity control option: To 100% humidity with high speed piezo humidifier within mannequin head. Water trap within head.
  • Exhale temperature control option: To +36C, 1KW heater head. Fitted within mannequin head.
  • CO2 Monitoring Option (NMIR): 20 samples per second
  • O2 Monitoring Option: 1 sample per second, galvanic
  • Mass Spectrometer Gas Monitoring Option: 20 samples per second, all gases measured simultaneously.
DIMENSIONS Weight

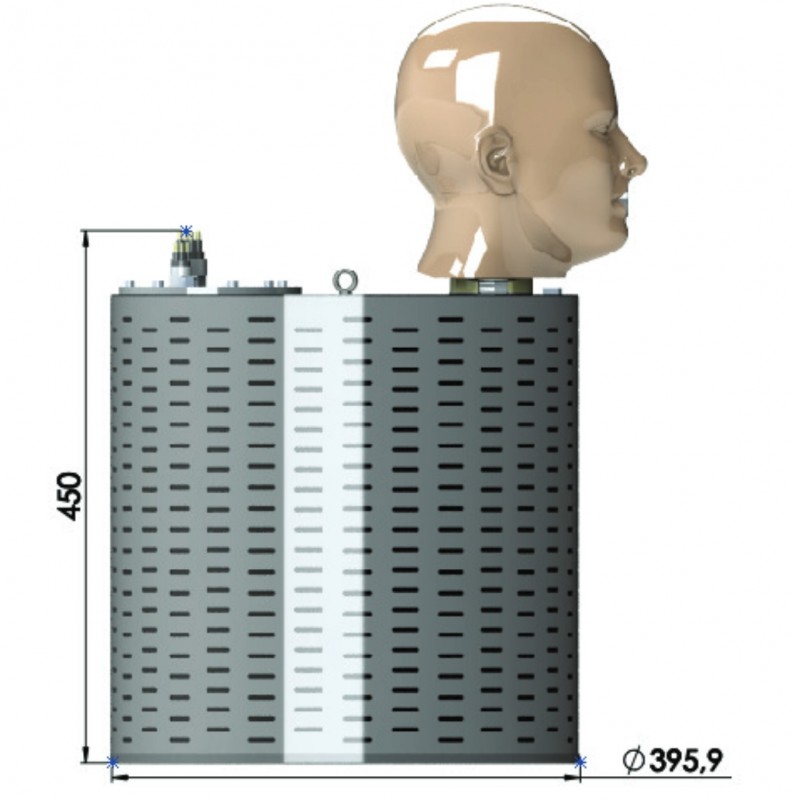

Size of machine ( Head excluded):450mm height by diameter 395.9mm

Weight of the breathing machine varies:

  • 25.8kg in hyperbaric version
  • 21.5kg in non-hyperbaric version

APPLICATIONS

  • Certification testing to EN250, EN14143 and NORSOK U-101
  • Rebreather characterisation
  • Open Circuit breathing system test
  • Saturation dive system testing
  • Aeronautic bib testing

Open Safety and its parent, Deep Life, developed this new generation of digital hyperbaric respiratory simulator to enable their equipment to be tested more thoroughly, and faster than ever before. Enabling cost-effective, in-house R&D and OT&E by both ourselves and external customers, whom have suitable hyperbaric chamber infrastructure. These respiratory simulators are supplied fully calibrated and are acceptable to all Notified Bodies. These machines provide all the WOB and similar curves at a press of a button, display everything in real time; even generating the CE compliance Word document with the results nicely set out automatically.

Breathing rate, stroke, waveform shape (supporting sine, human breathing waveforms, trapezoids as standard), temperature etc is all controlled by a very easy to use Labview GUI: essentially. They can work to 1000m (3300ft) depth for the physical unmanned testing of rebreathers in pressure vessels.

Available as an option is a small respiratory mass spectrometer that integrates with this hyperbaric breathing simulator, e.g. for CO2, O2 and other tests to ISO 17025 level, giving unprecedented resolution, accuracy and speed in tests.
