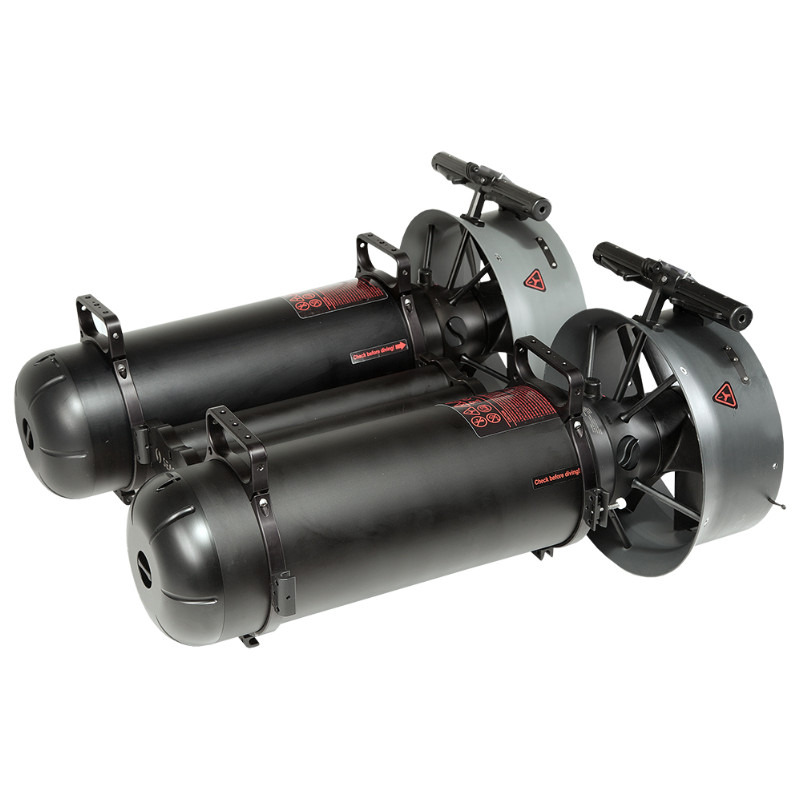

Dual scooters are used, where a higher pulling force and cargo-transport capabilities are required.The coupling platform has built-in, water-trimmable innovative buoyancy compensation chambers, allowing to assemble a navigation system, special equipment or simply load it with dry-bags.
SET INCLUDES
Dual TAC2000 platform - coupling system gen. II, narrow platform
GM1744 Scooter TAC2000 - 2 pieces
TGM1720 Aluminium transport box with dedicated insert foam for dual TAC1000 platform - 2 pcs
TGM1500 TAC2000 scooters coupling set - gen. II, narrow platform
UM1758 Charger 400W 9S LiIon dedicated to TAC1000 I TAC2000 scooters - hermetic charging
port connector
UM1757 Universal sports camera mount, attached to the control module - 2 pieces
UM1760 Scooter harness 1,8m with carabiner and two tensioners - 2 pieces
UM1754 Direct battery charging connector for TAC1000 and TAC2000 scooters - 2 pieces
UM1764 Service key
UM1792 Scooter trigger's lock (for two triggers) - 2 pieces
UM1793 Tow bar - 2 pieces
GM1756 Ballast belt for TAC1000 - 2 pieces
TGM1757 Spare parts set for dual TAC1000 platform
USEFUL INFO
DELIVERY 2 x Aluminium transport box* (TFM1720) : dimensions:940x490x500mm,weight: 60.78kg Transport box is used for regular storage and difficult conditions transport. It accommodates all standard set components, mounted scooter stand* and a limited amount of additional items. It is adapted to enable the transport of DPV with assembled, ready to use ENC3M navigation platform*. TheENC3Mnavigation console is packed in a separate case, spareparts, depending on the quantity ordered, are packed separately.
WARRANTY AND DOCUMENTATION
Standard: 24 months for the scooter, 12 months for battery.
Extended warranty for a fee. Parts availability: min. 10 years.
Documentation: User manual, Spare parts catalogue.
*Equipment not included in the standard set, has to be ordered separately Seacraft DPV - military and special How to charge the Seacraft
Care and Storage Instructions
After use, wash in fresh water and allow to dry in a well ventilated area out of direct sunlight
Store in a well ventilated dry area away from direct sunlight
Specifications
MOTOR
Working time at optimal speed (45m/min.)* >980 min.
Working time at maximum speed (gear 9)* >220 min.
Range* >44,1 km
Range at maximum speed** >18,2 km
Maximum static thrust >700 N
Top speed*** >2,0 m/s
BATTERY
Battery Li-Ion capacity 2 x 2000 Wh
Nominal battery voltage 32,4 V
Charger operating voltage (230 V, 50 Hz) 400 or 900W
Average time of charging 90 / 100% or 3 / 7 or 3,5 h
DIMENSIONS & WEIGHT
Dimensions in milometers 800×952×410
Total weight 50.13 kg
Weight - two scooters 45 kg
Weight - coupling system 5,13 kg
* Applicable in terms of a diver in standard chestmount oxygen rebreather, in a dry suit, in fresh water. Range tested for optimalspeed. ** Applicable for the diver in test configuration*, and gear 9. DPV automatically decreases maximum available power to gear 7, whenthebattery reaches 20%of charge. For theexact speed profile, ask the manufacturer. *** Topspeed is acheivedin lighweight configuration, using a special booste rgear- ‘+’
Norms, certifications and quality control
Seacraft means quality. We ensure highest industrial standards for design and production of all our products. All Secraft products are manufactured in accordance with AQAP 2110:2016 (NATO Quality Assurance Requirements for Design, Development and Production), ISO 9001:2015, and PN-EN ISO 14001:2015, and certificate of the Internal Control System in the field of trade in goods of strategic importance.
Seacraft factory quality control runs rigorous testing on every manufactured product. Each manufactured scooter goes through:
pressure chamber test – 60 minutes on test depth
battery capacity test with 25 A load
functional tests in water pool, with thrust measurement and monitoring and real burntime on maximum power
electrical and electronic tests
internal quality control with machining and production quality
Signed test reports are stored for each individual unit.
