Navigation platform ENC3M – complete set with speed sensor and GPS buoy assembled on a dedicated support base (which allows assembling also backup measurement instruments). This system supports navigation in full diving mode while recalibrating the fixed position covertly (if required), in order to improve the approach precision.NAVIGATION PLATFORM ENC3M - complete set
EM1730 Electronic Navigation Console ENC3M
EM1731 Electronic Navigation Console ENC3M speed sensor - type B
EM1812 GPS buoy dedicated to ENC3M - type B
EM1733 Support base for mounting ENC3M and backup measuring instruments
(compass, depth meter, chemical light)
EM1734 Transport case with dedicated insert foam for ENC3M navigation platform
EM1738 Charging cable for ENC3M
EM1700 Spare parts set for ENC3M with speed sensor type B
TRANSPORT CASE DIMENSIONS & WEIGHT
Width 340 mm
Lenght 420 mm
Height 170 mm
Weight (complete platform in transport case) 4,16 kg

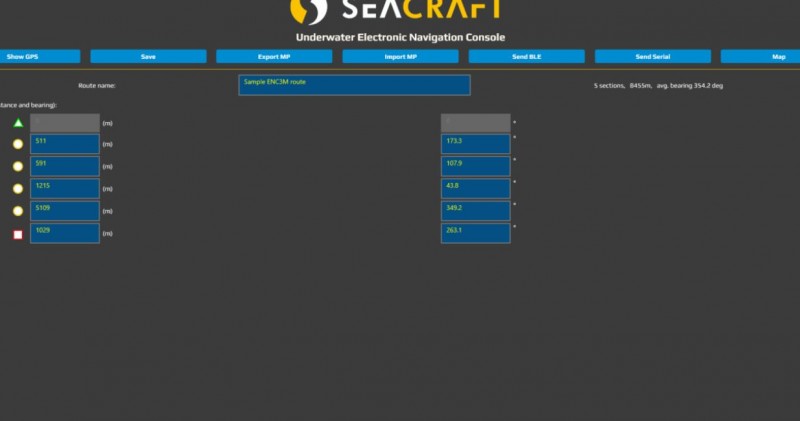

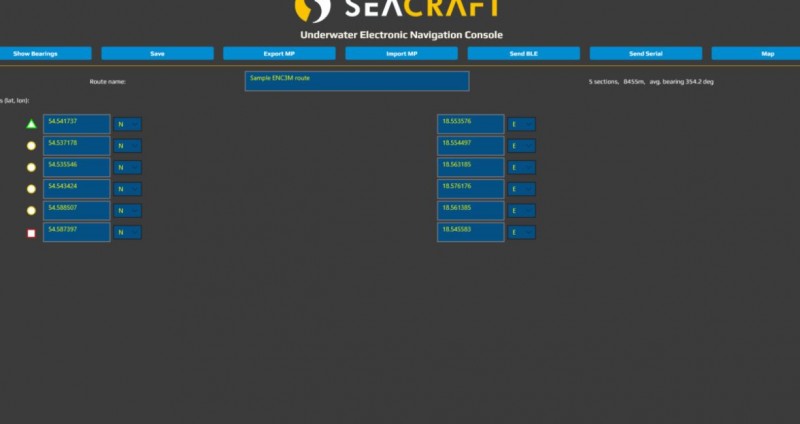

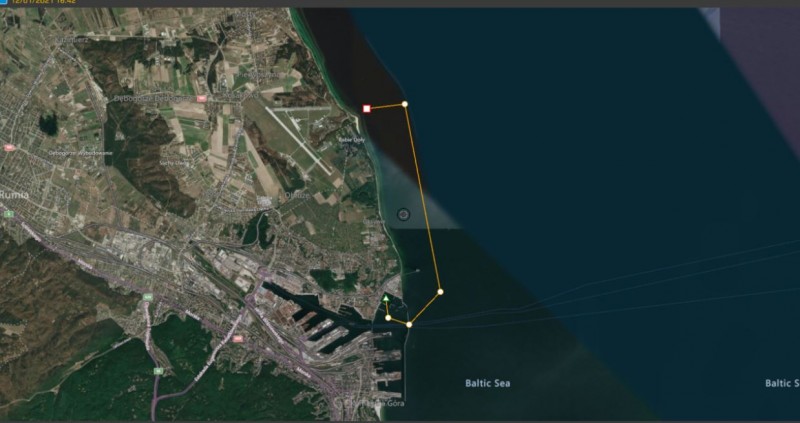

Route planning Route can be planned as multi-point track- in visual way, in the azimuth-distance based way, or as absolute GPS locations of particular point.
Underwater Operation

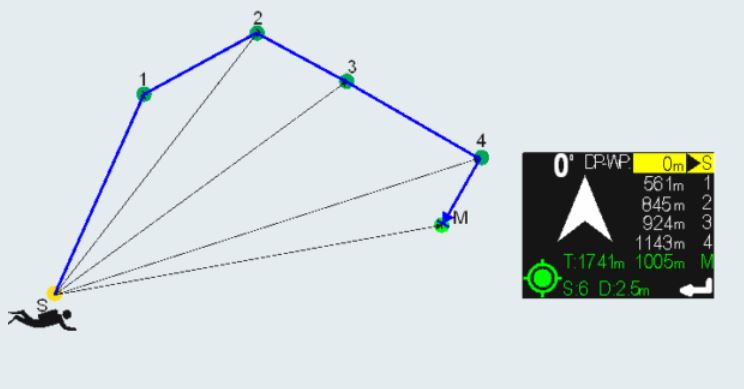

Underwater, any point can be chosen in any moment- resulting in display of shortest possible (linear) route to the given point. ENC3M will use calculated 100% underwater estimated position, or- if there is agood fix position available- recalculate position and directions in real time. Diver can follow the pre-planned points one-by-one, or decide based on the situation where he wants to navigate.
ENC3M Overview
To see ENC3M in action, and discover more about it’s capabilities – see the video:

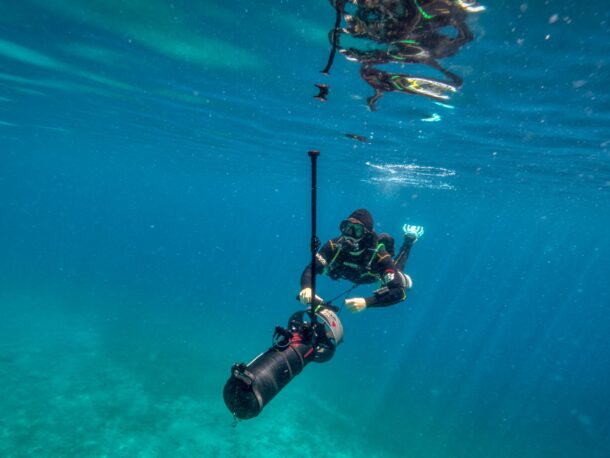

Rigid foldable mast
Special constructed mast, which is easy to fold into small element and store on the DPV- has a unique low drag profile, what reduces turbulences, vibrations, and sub-surface operator can obtain a fixed position even moving with a great speed.
Tool of choice
In order to get more information about ENC3M- contact us.
ENC3M- Seacraft military navigation system at a glance
After use, wash in fresh water and allow to dry in a well ventilated area out of direct sunlight
Store in a well ventilated dry area away from direct sunlight
Specifications
NAVIGATION
Depth of start and stop of immersion time counting Optional: 0.5, 1 or 1.6 m
ENC3M SPECIFICATION
Accuracy of depth measurement 0.3 m in the whole depth range,
temp. range: 0…30°C
Accuracy of ext. log <2%*
Accuracy of compass <5 degrees*
Possibility of using above the water level up to 5000 m
Internal storage capacity 50 routes
Included sensors 3D magnetometer, 3D gyroscope,
3D accelerometer, pressure sensor,
temperature sensor
Satelite positioning GPS, Beidou, GLONASS
Data exchange via Bluetooth 4.2 and/or via USB cable
BATTERY
Battery type Built-in Li-ion 3,7 V**
Battery capacity 5 Wh
Average time of charging 100% <2 h
DIMENSIONS & WEIGHT
Width 30,6 mm
Lenght 95 mm
Height 71 mm
Weight (console only) 290 g
Norms, certifications and quality control
Seacraft means quality. We ensure highest industrial standards for design and production of all our products. All Secraft products are manufactured in accordance with AQAP 2110:2016 (NATO Quality Assurance Requirements for Design, Development and Production), ISO 9001:2015, and PN-EN ISO 14001:2015, and certificate of the Internal Control System in the field of trade in goods of strategic importance.
Seacraft factory quality control runs rigorous testing on every manufactured product. Each manufactured scooter goes through:
pressure chamber test – 60 minutes on test depth
battery capacity test with 25 A load
functional tests in water pool, with thrust measurement and monitoring and real burntime on maximum power
electrical and electronic tests
internal quality control with machining and production quality
Signed test reports are stored for each individual unit.
