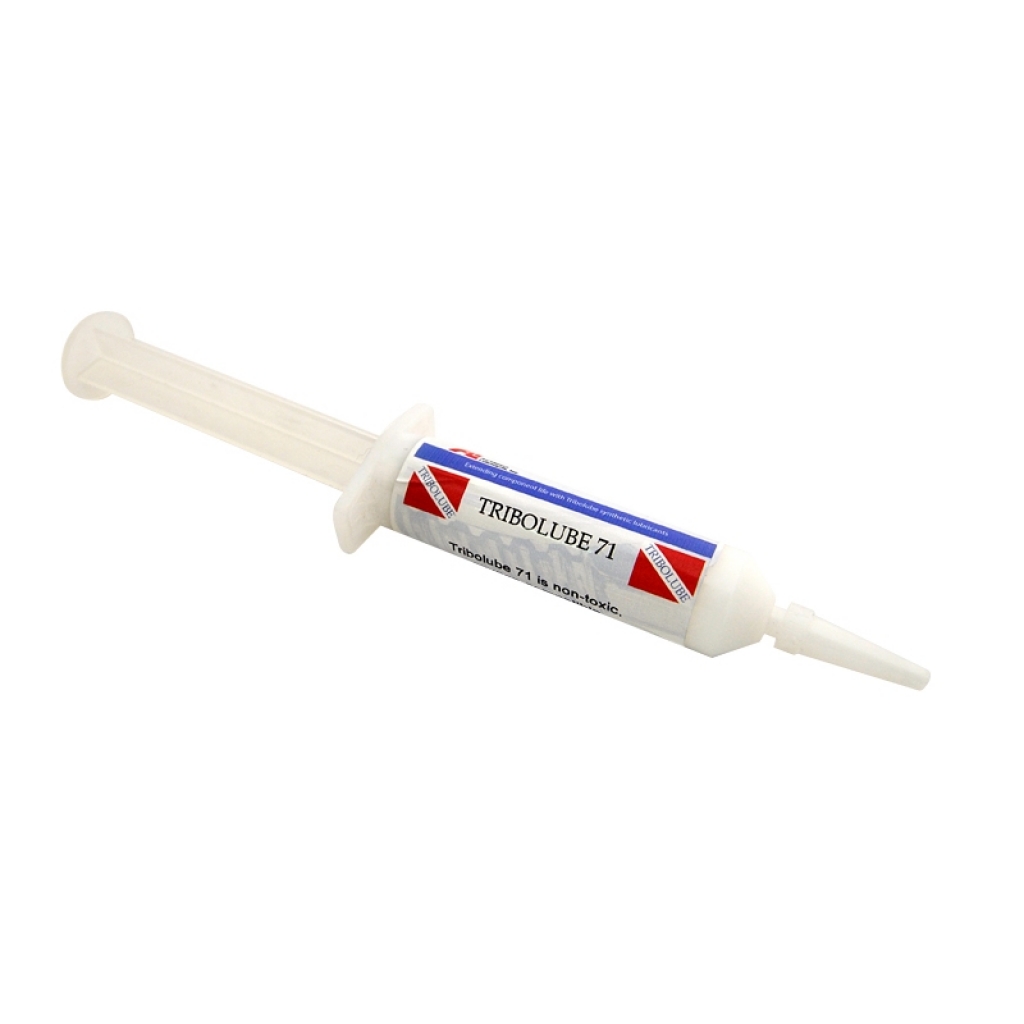

Tribolube 71, 2 Oz. Syringe

Rating & reviews (0 reviews)

Just now there are 1 people looking here.

sku: LUPC71-9721.S



Product details

Brand: Tribolube

TRIBOLUBE® 71 PFPE GREASE FOR STATIC & DYNAMIC APPLICATIONS

Tribolube 71, 2 Oz. Syringe

TRIBOLUBE 71 primary characteristic is that it uses PTFE that has not been irradiated. Non-irradiated PTFE over long term exposure has demonstrated it does not corrode aluminum or anodized aluminum. Tribolube-71 has a very wide temperature range, nonreactive with strong acids, oxygen, fuels, and solvents. It is an excellent anti-wear, extreme pressure lubricant with long life. Tribolube-71 is qualified to MIL-PRF-27617 types 1, 2, & 3.

Specifications

Tribolube 71, 2 Oz. Syringe

Specifications

Packaging
2 Oz. Syringe
Tribolube Series
Tribolube 71
Market
Scuba
Temperature Range
-100 - 450 °F
NLGI No.
1
Unworked Penetration @ 77°F
294
Worked Penetration @ 60 Strokes
299
Oil Separation 30 hrs @ 300°F
9.20%
Oil Separation 30 hrs @ 350°F
10.53%
Oil Separation 30 hrs @ 400°F
11.7%
Evaporation 22 hrs @ 400°F
0.7%
Evaporation 22 hrs @ 450°F
2.88%
Low Temperature Torque @-65°F, Starting
553 gm-cm
Low Temperature Torque @-65°F. 60 min. Running
293 gm-cm
Low Temperature Torque @-75°F. Starting
910 gm-cm
Low Temperature Torque @-75°F. 60 min. Running
260 gm-cm
Low Temperature Torque @-100°F. Starting
3835 gm-cm
Low Temperature Torque @-100°F. 60 min. Running
1073 gm-cm
Copper Corrosion - 24 hrs @ 212°F
1b
Load Wear Index
144.34
Last Non-Seizure @ Load/Wear Scar
None kg/mm
Last Seizure @ Load/Wear Scar
620/1.87 kg/mm
Weld Point @ Load
800 kg
Steel-on-Steel Wear @ 1200 rpm, 40 kg, 167°F, 1 hrs, 52100 steel
1.02 mm
Steel-on-Steel Wear @ 1200 rpm. 40 kg. 400°F. 1 hrs. 52100 steel
1.09 mm
High Temperature Performance @ 400°F, 10000 rpm, 5 lbs
+2800 hrs
Film Stability and Steel Corrosion 168 hrs @ 212°F
Pass
Water Washout- 1 hr @ 105°F
0.1 %
Resistance to Aqueous Solution 168 @ 77°F
Pass
LOX Impact Sensitivity 20 impacts from 1100 mm
No Reaction
Fuel Stability @ 77°F
0.20 %
Fuel Resistance 8 hrs @ 77°F
Pass
Oxidation Stability 100 hrs @ 212°F
-1 psi
Oxidation Stability 500 hrs @ 212°F
-1.5 psi
Mil Specs
MIL-PRF-27617
MIL-PRF-27617 (Type 1)
MIL-PRF-27617 (Types 2 and 3)

Applications

TRIBOLUBE-71 is intended for use in scuba applications as well in small and large diameter ball, roller, needle, and plain bearings, threads, valves, gears, and screw actuators. It is compatible with most elastomers and plastic seals, gaskets and O-rings. Although this lubricant is very inert, newly exposed rubbing surfaces of aluminum and magnesium may react with the greases under certain conditions.


Resources

TRIBOLUBE - 71: SAFETY DATA SHEET

TRIBOLUBE - 71: SAFETY DATA SHEET

Size: 256,59 Kb
