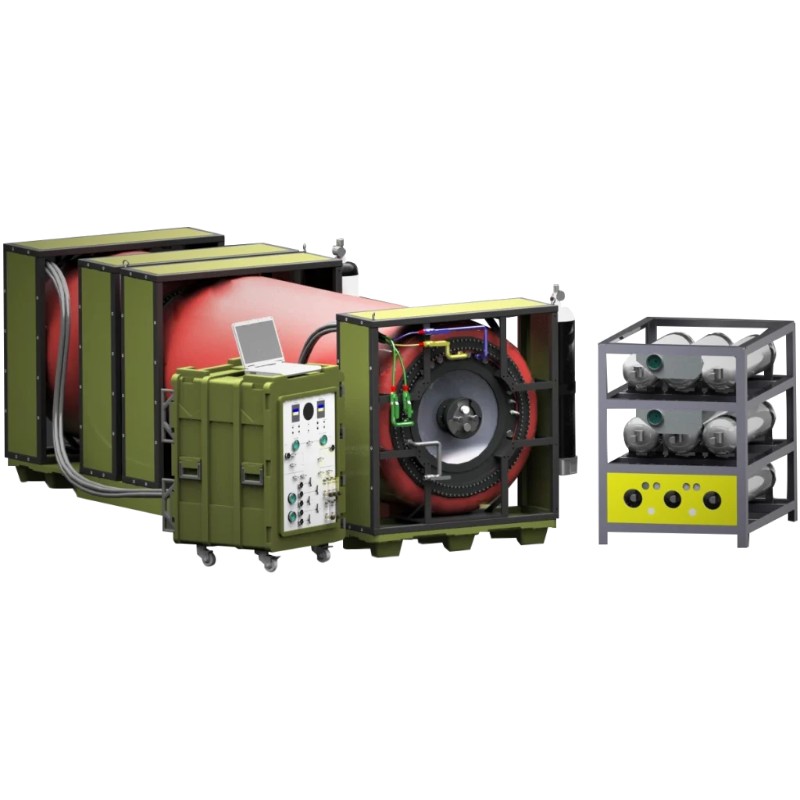

Hyperlite DL5

The Hyperlite DL5 is the only ASME PVHO-1 Case 18 compliant, foldable, modular, lightweight double-lock hyperbaric chamber designed for use in challenging military environments, such as military diving operations or submarine escape & rescue.

Key Features

✔  Multiple Occupant, Double-Lock System
✔  Suitable for Hands-on Medical Attention
✔  Tested for military scenarios, including gunshot ✔  3 - 4 Occupants

Description	Imperial	Metric
ML Length:	100 in.*	254 cm*
Diameter:	42 in.	107 cm
Window Thickness:	1.7 in.	4.31 cm
Bladder Thickness:	22.19 in.	56.36 cm
PV Weight:	470lb*	213kg*
PV Volume:	80 ft3*	24.4 m3*
EL Length:	40"	100cm
Diameter:	42 in.	107 cm
Window Thickness:	1.7 in.	4.31 cm
Bladder Thickness:	22.19 in.	56.36 cm
PV Weight:	507 lb	230 kg
PV Volume:	94 ft.3	2,662 litres
Max. Allowable Working Pressure:	165 fsw	50 msw
Production Test Pressure:	248 fsw	76 msw
Prototype Test Pressure Achieved:	809 fsw	246 msw

OCCUPANTS

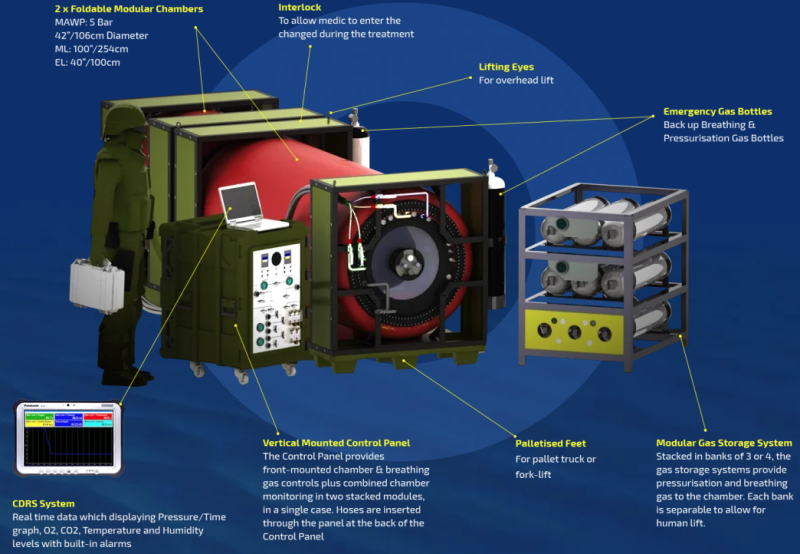

Multiple Occupant, Double-Lock System providing Hands-on Medical Care Capability
The DL5 System is equipped with a large Main Lock (appr. 250cm) and a smaller Entry Lock (appr. 100cm) providing ample room inside the chamber for multiple patients or for a patient and a tender to provide hands-on medical attention. The Entry Lock allows for a patient to move in and out of the Main Lock during a treatment.


VOLUME & WEIGHT
Foldable Tube with Small Packaged Volume
The small packaged volume, together with the smart design of the Hyperlite DL5 Case is intended to provide the end-user with multiple options for mobilisation through base lift – through an inbuilt pallet system, overhead lift – through a or through a wheeled option. The external frame support, termed the exoskeleton, allows for multiple fixture and fitting options to be added, making the case highly versatile for additional subsystems and transport options.


CERTIFICATIONS
Global certifications & the most extensive testing
Hyperlite Chambers are the most extensively tested hyperbaric chambers in the industry. Our multiplace chamber systems have completed a rigorous Prototype Test program, witnessed by Lloyds Register as in compliance with ASME PVHO Case 18.  In addition, at the request of a Military Customer, The Hyperlite DL5 underwent a damage tolerance test with one (1) .762FMJ fired from an M16 rifle. The first known test of it’s kind, the results demonstrated that even if the pressure vessel is hit by a large rifle bullet, the pressure vessel will not catastrophically fail. Instead the system depressurised in a slow controlled manner, demonstrating that the materials used in the Hyperlite DL5 are more inherently safe when being operated in austere environments when compared to traditional metallic chambers.

DESIGN CODES & STANDARDS
✔	DESIGN CODES	ASME PVHO-1 (2012) & Case 18
✔	TEST WITNESSING	LLOYD’S REGISTER
✔	QUALITY ASSURANCE ASSESSORS	SGS UK LTD SYSTEMS & SERVICES CERTIFICATION ISO 13485:2016

PROTOTYPE TESTING
✔	OVERPRESSURE TEST	10 x PVHOs at 360 psi for 30 minutes @ 38˚C
✔	EXTENDED DURATION CREEP TEST	10 x PVHOs at 300 psi for 300 hours @ 38˚C
✔	CYCLIC PRESSURE TEST	4000 CYCLES - 0 to 80 psi
✔	CYCLIC FOLDING TEST	1100 CYCLES
✔	COLD STORAGE TEST	2 x PVHOs @ - 18˚ C
✔	DAMAGE TOLERANCE TESTING	Controlled depressurisation after .762 round from 91 meters
